Reverse osmosis system 3 m3/h

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

Download PDF

Leave details

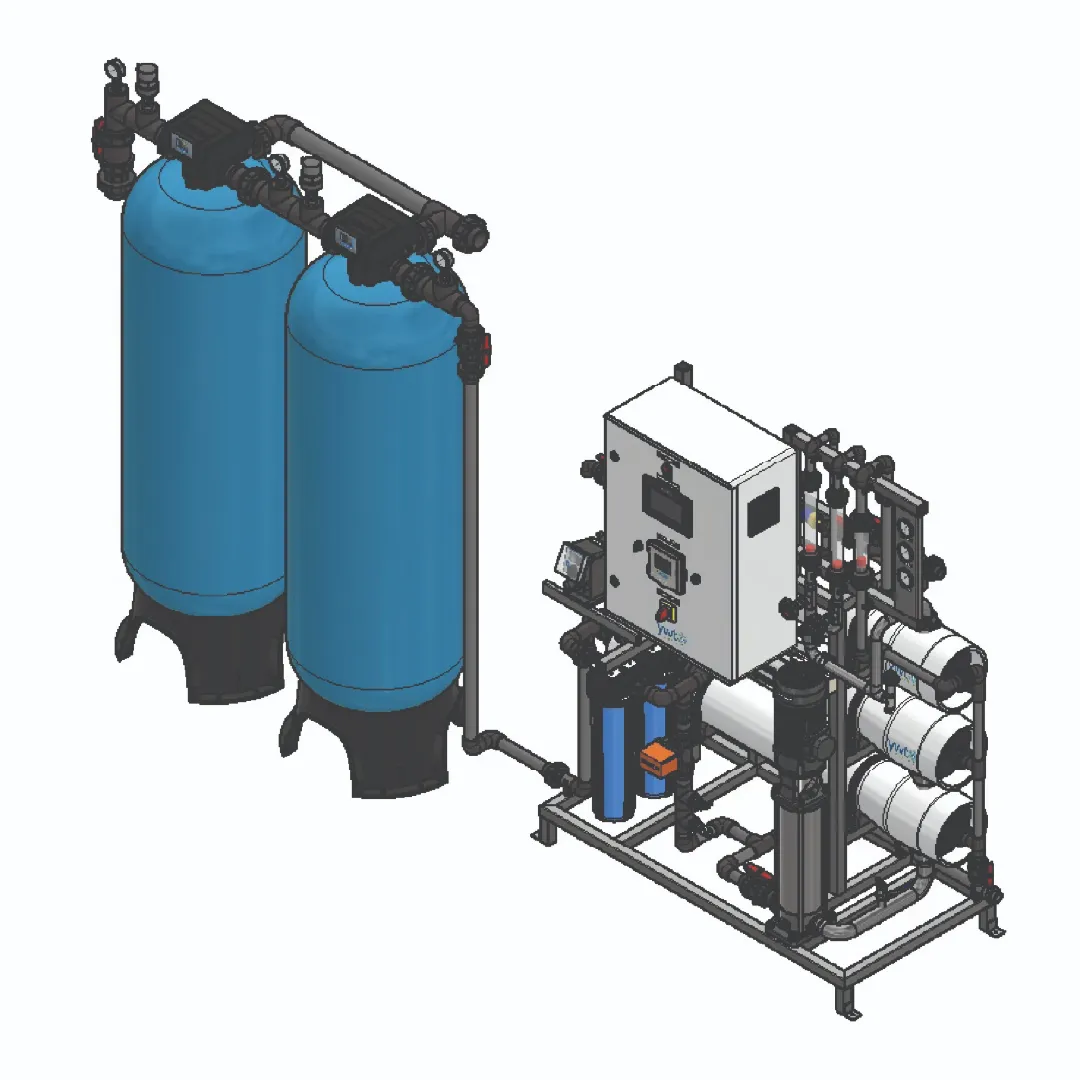

Reverse osmosis system 3 m3/h
Reverse osmosis system 3 m3/h - Image 2
Reverse osmosis system 3 m3/h - Image 3

Reliable Company

A stable company with extensive experience in the water industry.

High-Quality Products

We develop high-quality products at competitive prices.

Professional Expertise

Delivering advanced solutions backed by knowledge, innovation, and industry expertise.

Categories: ,

Technical information

EQUIPMENT

  • Ebara high pressure pump 1 pcs
  • 8040 membrane housing 3 pcs
  • BB20 sediment prefi lter 2 pcs
  • Motorized valves 1 pcs
  • Balancing valves 2 pcs (concentrate reject, concentrate recycle)
  • Electrical panel with PLC controller 1 set
  • ABB conductivity controller 1 set (pH option)
  • AISI 316 Stainless-steel high-pressure line 1 set
  • AISI 304 Stainless steel frame 1 set
  • Grundfos dosing pump 1 set (option for 2 sets)

CONNECTION PORT SIZES:

  • Inlet water G 1″
  • Permeate G 1″
  • Concentrate G 1″
  • CIP inlet G 1″
  • CIP return G 1″
  • CIP permeate G 1″
  • Antiscalant dosing port G ½″

PHYSICAL PARAMETERS:

  • Approximate dimensions (bare) 1.88 × 0.8 × 1.90 m
  • Approximate dimensions (crated) 2.10 × 1.0 × 2.0 m (Width × Depth × Height, ±5%)
  • Approximate weight (bare) 280 kg
  • Approximate weight (crated) 370 kg
